Architecture

Fastpaca runs a Raft-backed state machine that keeps the context log, snapshot, and LLM context builder in one place. Every node exposes the same API; requests can land anywhere and are routed to the appropriate shard.

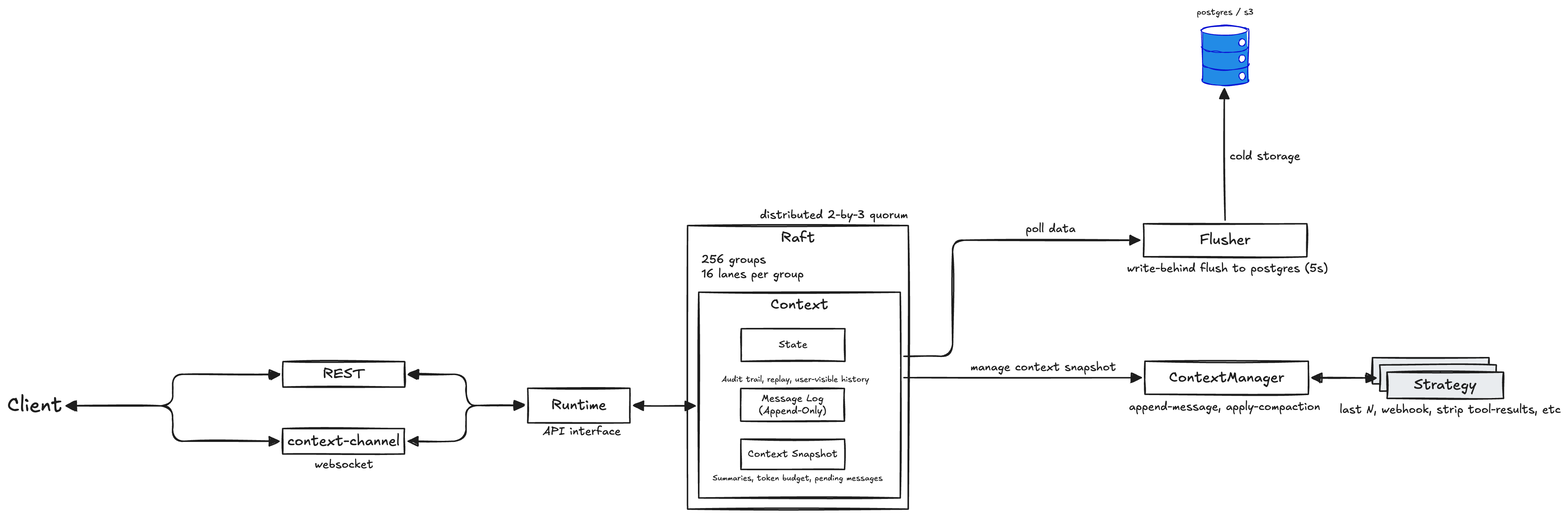

Components

Component	Responsibility
REST / Websocket gateway	Validates requests and forwards them to the runtime.
Runtime	Applies appends, builds LLM context, enforces token budgets, and triggers compaction flags.
Raft groups	256 logical shards, each replicated across three nodes. Provide ordered, durable writes.
Snapshot manager	Maintains compacted summaries alongside the raw log.
Flusher (optional)	Streams committed messages to Postgres for analytics/archival.

Data flow

1. Append – the node forwards the message to the shard leader; once a quorum commits, the snapshot updates and the client receives {seq, version}.
2. Window – the node reads the snapshot from memory, trims it to the requested budget, and returns messages + metadata.
3. Compact – the node rewrites the snapshot range atomically and bumps the context version; the raw log remains untouched.
4. Stream/Replay – served directly from the in-memory snapshot and ETS tail, falling back to Postgres or the Raft log when needed.

Operational notes

• Leader election is automatic. Losing one node leaves the cluster writable (2/3 quorum).
• Append latency is dominated by network RTT between replicas; keep nodes close.
• Snapshots are persisted as part of Raft checkpoints so a node can recover its state without replaying the entire log.
• The architecture is symmetric — there is no special coordinator or control plane to manage.
